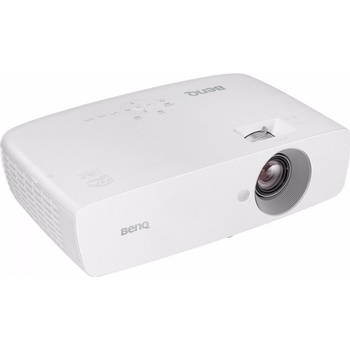

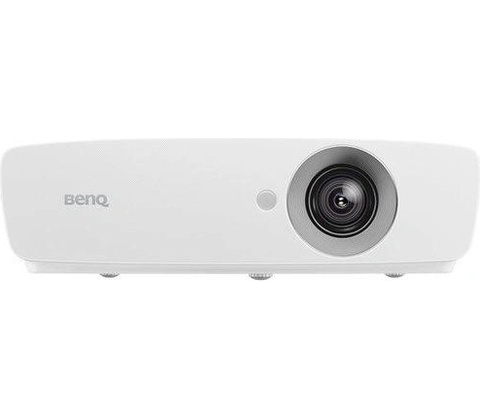

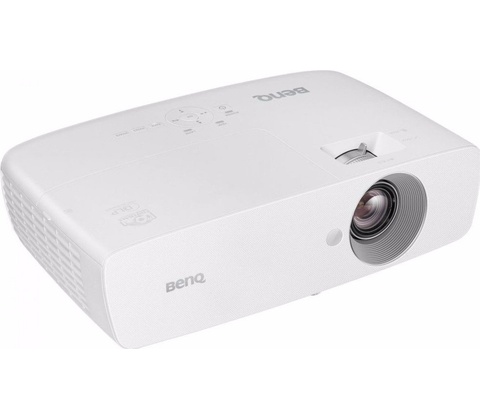

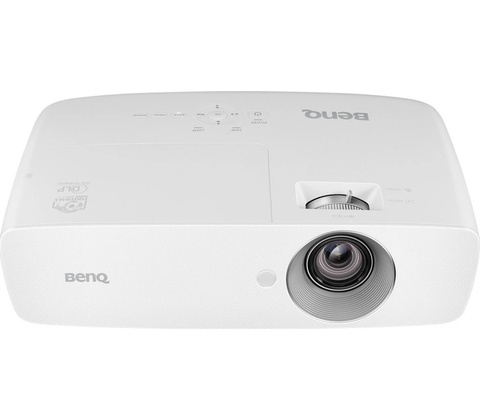

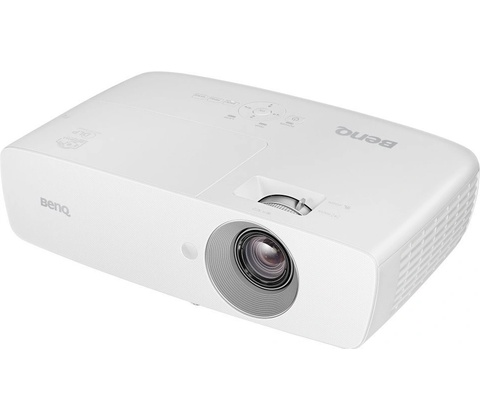

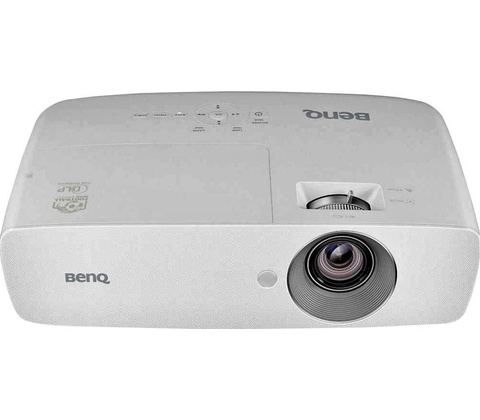

BenQ TH683

BenQ TH683 Home Entertainment Projector

The Best Way to Enjoy the Beautiful Game

BenQ TH683 with Football Mode is just the all-in-one projector you need to enjoy home entertainment. Featuring Full HD 1080P resolution with 3200 ANSI lumens and 10000:1 high contrast ratio, TH683 also offers multi display for ultra-smooth connection to keep your enjoy high image quality without worry!

Projection System DLP

Native Resolution 1080p (1920x 1080)

Brightness (ANSI Lumens) 3200 AL

Contrast Ratio 10000:1

Display Color 1.07 Billion Colors

Lens F=2.59~2.87, f=16.88~21.88mm

Aspect Ratio Native 16:9 (5 aspect ratio selectable)

Throw Ratio 1.15-1.5

Image Size (Diagonal) 60~180

Zoom Ratio 1.3:1

Lamp Type 210W

Lamp Mode (Normal/Economic/SmartEco/LampSave)* 3500/5000/7000 hours

Keystone Adjustment 1D, Vertical +/- 40 degrees

Projection Offset** 115%±5%

Resolution Support VGA(640 x 480) to WUXGA(1920 x 1200)*RB-Reduced blanking

Horizontal Frequency 15~102KHz

Vertical Scan Rate 23~85Hz

HDTV Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

Video Compatibility NTSC, PAL, SECAM 3D Compatibility

• Frame Sequential: Up to 60Hz 720p
• Frame Packing: Up to 24 Hz 1080p
• Side by Side: Up to 24Hz 1080p
• Top Bottom: Up to 60Hz 1080p

Interface PC in (D-sub 15pin) x1

HDM x2 (HDMI with MHL2.0 x1, HDMI x 1)

MHL x 1(HDMI with MHL2.0)

Audio in (RCA) x 1

Audio in (Mini Jack) x 1

Audio out (Mini Jack) x 1

Speaker 10W x 1

USB (Type mini B) x1 (Download)

USB (Type A) x1 (Charger)

RS232 (DB-9pin) x 1

IR Receiver x2 (Front+Rear)

Dimensions (W x H x D mm) 346.24 mm (W) x 101.70 mm (H) x 214.81 mm (D)

Weight 2.65kg

Audible Noise (typ.) 34/29 dBA (Normal/Economic mode)

Power Supply AC100 to 240 V, 50 to 60 Hz

Power Consumption 270 W(Normal), 220 W(Eco), Standby -lt;0.5W

On-Screen Display Languages Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages)

Picture Modes ** Bright / Football /Football(Bright) / Cinema / Game/ User

Accessories (Standard)

Power Cord (by region)

Remote Control w/ Battery

User Manual CD

Quick Start Guide

Warranty Card (by region)

VGA(D-sub 15pin) Cable

Accessories (Optional)

Spare Lamp Kit

Ceilling Mount 3D Glasses

Wireless Kit

Carry bag

Power Management Function Automatic power off after 20 minutes without a display source.
