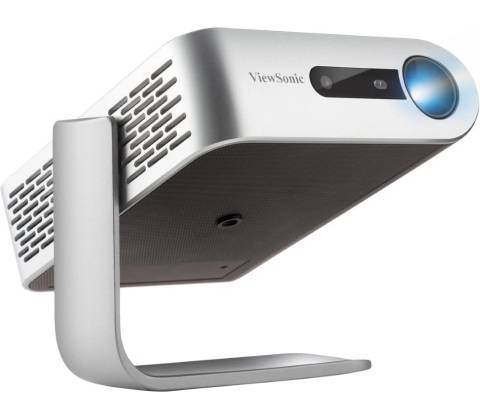

Viewsonic M1

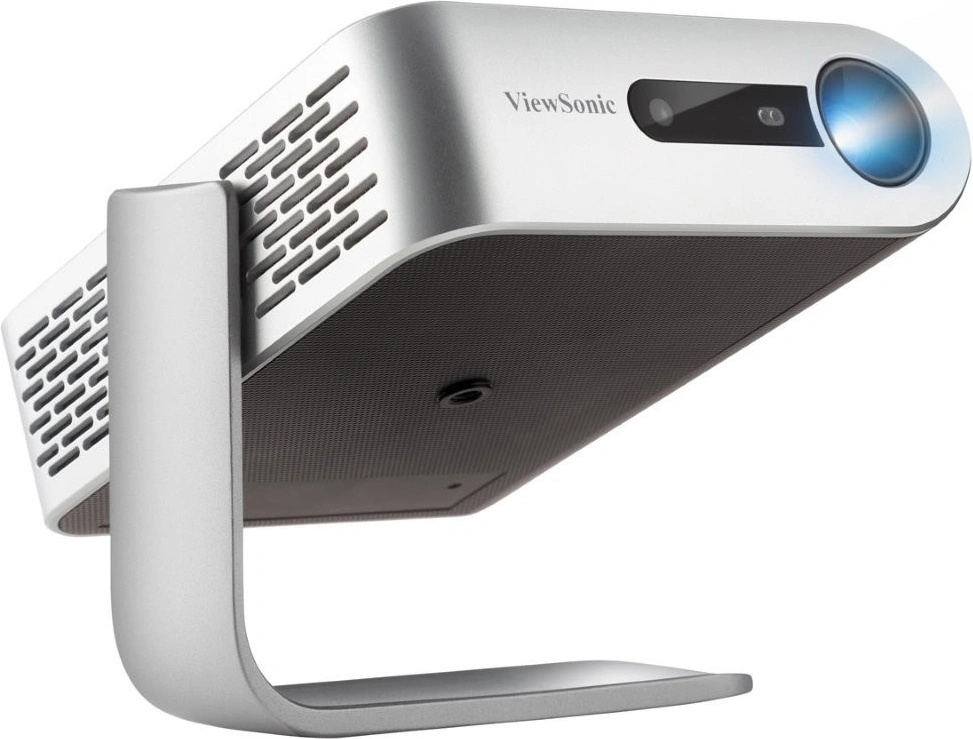

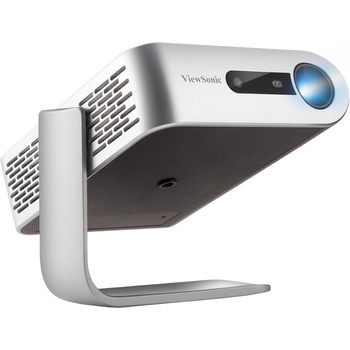

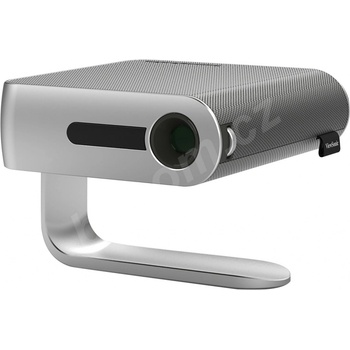

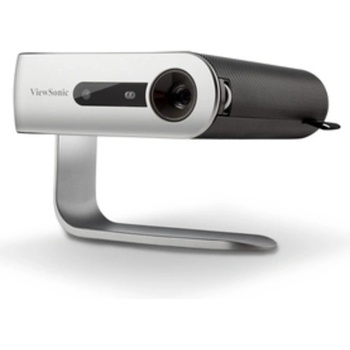

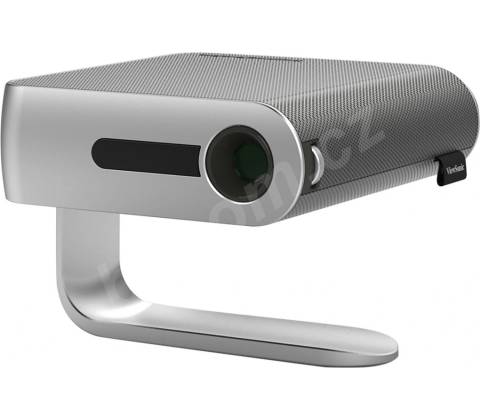

The ViewSonic® M1 is an ultra-portable LED projector that delivers convenient entertainment in nearly any room. With a built-in battery and over 30,000 hours of operational life, this projector will deliver years of multimedia entertainment wherever it goes. Weighing less than two pounds, the M1’s compact and lightweight design makes it ideal for moving from room to room, or for indoor/outdoor usage. An integrated smart stand provides for simple 360-degree setup, while also doubling as a lens cover. Once the lens is uncovered, the projector automatically powers on with full brightness for instant entertainment. The lens also features a safety auto-off feature that powers down the projector when objects are detected too close to the lens. Dual Harman Kardon speakers provide crisp and clear sound for multimedia content, while a short throw lens can display large images in small spaces. What’s more, versatile connectivity options include a MicroSD card slot, USB Type-A, and USB Type-C – making the M1 a great option for sharing and displaying videos and other multimedia content.

Product Specifications

Most Viewed Specs

Resolution 854 x 480

Throw Ratio 1.2

Throw Distance 40 in / 1.0 m

Brightness (ANSI Lumens) 250

Full Specifications

Display

TYPE

DLP

RESOLUTION TYPE

WVGA

RESOLUTION 854 x 480

BRIGHTNESS (ANSI LUMENS) 250

THROW DISTANCE 40 in / 1.0 m

THROW RATIO 1.2

DISPLAY SIZE (IN.) 24 - 100 in. / 0.6 - 2.54 m

KEYSTONE

Vertical (± 40o)

LENS

Fixed Zoom

LIGHT SOURCE (WATT) 10

LIGHT SOURCE LIFE, NORMAL (HOURS) 3000

COLOR DEPTH 1.07B Color (R/G/B 10bit)

DYNAMIC CONTRAST RATIO 12,000:1

ASPECT RATIO 16:9

Video Signal

FREQUENCY HORIZONTAL 15h~135kHz

FREQUENCY VERTICAL 23~120Hz

Compatibility

PC RESOLUTION (MAX) 1920 x 1080

PC RESOLUTION (MIN) 640 x 480

MAC® RESOLUTION (MAX) 1920 x 1080

MAC® RESOLUTION (MIN) 640 x 480

Connector

USB 2.0 TYPE A 1

USB 3.1 TYPE C 1

CARD READER

Micro SD 3.5MM AUDIO OUT 1

HDMI 1.4 1

Audio

INTERNAL SPEAKERS 3W (x2)

Power

VOLTAGE 100-240 VAC

CONSUMPTION (TYPICAL) 55W

STAND-BY
