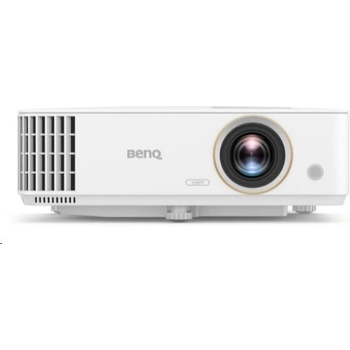

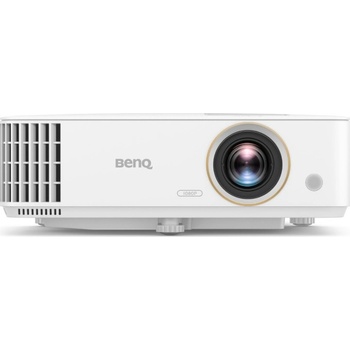

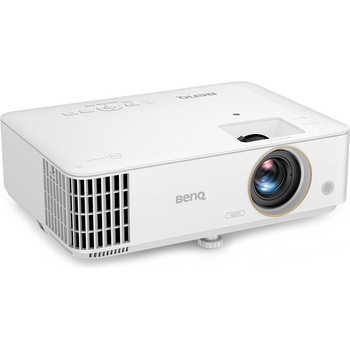

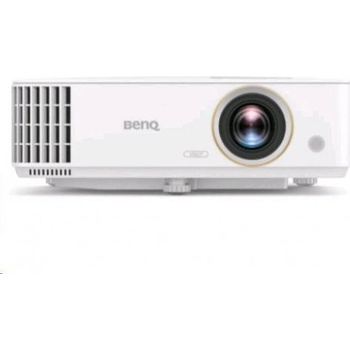

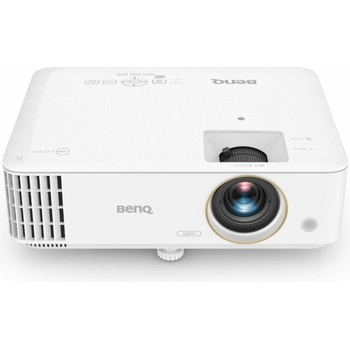

BenQ TH685i

Ultra-Low Input Lag HDR Console Gaming Projector Powered by Android TV | TH685i

Ultra-Low Input Lag of 8.3ms@120Hz with Dedicated Game Modes

Google-certified Android TV Smart projector with Google Play Store 1080p HDR enabled with 4K compatibility

Main Specifications

Resolution 1080p (1920x1080)

Brightness (ANSI lumens) 3500 ANSI Lumens

Contrast Ratio (FOFO)* 10,000:1

Speaker 5W Chamber Speaker x1

All Specifications

Display

Projection System DLP

Resolution 1080p (1920x1080)

Resolution Support VGA(640 x 480) to WUXGA(1920 x 1200)

Brightness (ANSI lumens) 3500 ANSI Lumens

Contrast Ratio (FOFO)* 10,000:1

Display Color 30 Bits (1.07 billion colors)

Native Aspect Ratio 16:9

Light Source Lamp

Light Source Life*

Normal 4,000 hours

Eco 10,000 hours

SmartEco 8,000 hours

LampSave 15,000 hours

Optical

Throw Ratio 1.13÷1.46 100" @ 2.5m (100" @ 8.2ft)

Zoom Ratio 1.3x

Keystone Adjustment Auto 1D Vertical ±30 degrees

Projection Offset 105%

Clear Image Size (Diagonal) 60"~200"

Image Size 30"~300"

Horizontal Frequency 15K~102KHz

Vertical Scan Rate 23~120Hz


Picture Mode Bright / Living Room / Cinema / Sports / Game / (3D)* / User 1 / User 2

Color Wheel Segment 6 segment (RGBWYC)

Color Wheel Speed 2x(2D/3D, 50Hz/60Hz) , 3D max 144Hz

Rec.709 Coverage 95%

Audio

Speaker 5W Chamber Speaker x1

Interface

PC VGA (D-Sub) x1

Monitor VGA Out (D-Sub) x1

HDMI x2 (HDCP2.2)

USB Type A x1 (1.5A power)

Audio in (3.5mm Mini Jack) x1

Audio out (3.5mm Mini Jack) x1

RS232 (DB-9pin) x1

IR Receiver x2 (Front / Top)

Security Bar Yes (Security Bar, Kensington Lock)

Special Feature

HDR Yes (HDR10, HLG)

CinemaMaster Audio+2 Yes

LumiExpert Yes

Compatibility

HDTV Compatibility 720p 50/60Hz, 1080i 50/60Hz, 1080p 24/25/30/50/60Hz, 2160p 23/24/25/30/60Hz

Power

Power Supply VAC 100 ~ 240 (50/60Hz)

Typical Power Consumption Max 340W, Normal 297W, Eco 206W

Standby Power Consumption 0.5W Max. at 100 ~ 240VAC

Acoustic Noise (Typ./Eco.) 35/29 dBA

Operating Temperature 0~40 °C

Dimension and Weight

Dimensions (W x H x D)(mm) 312 x 110 x 225 mm (12 x 4 x 9 inch)

Net Weight (Kg/ lbs) 2.8 kg (6.2 lbs)

Accessories (Standard)

Remote Control w/ Battery x1 RCV013 (5J.JGY06.001)

Power Cord (by region) x1

Quick Start Guide Yes (21L)

Warranty Card (by region) Yes

Battery x2 (AAA)

Accessories (Optional)

Spare Lamp Kit 5J.JKX05.001 3D Glasses Optional

OSD

OSD Language Arabic/ Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Persian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/ Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese/ Vietnamese (30 Languages)

• This model is designed for general home entertainment and business use. To extend the lifespan of your BenQ projector, it is recommended to power off the projector for 2-3 minutes after 12 hours of continuous use.
• The Contrast is measured by Full On Full Off standard.
• *Lamp life results will vary depending on environmental conditions and usage. The actual product's features and specifications are subject to change without notice.
• **In order to minimize response time, we suggest to set digital adjustments (such as Keystone/Overscan…etc) to 0.
