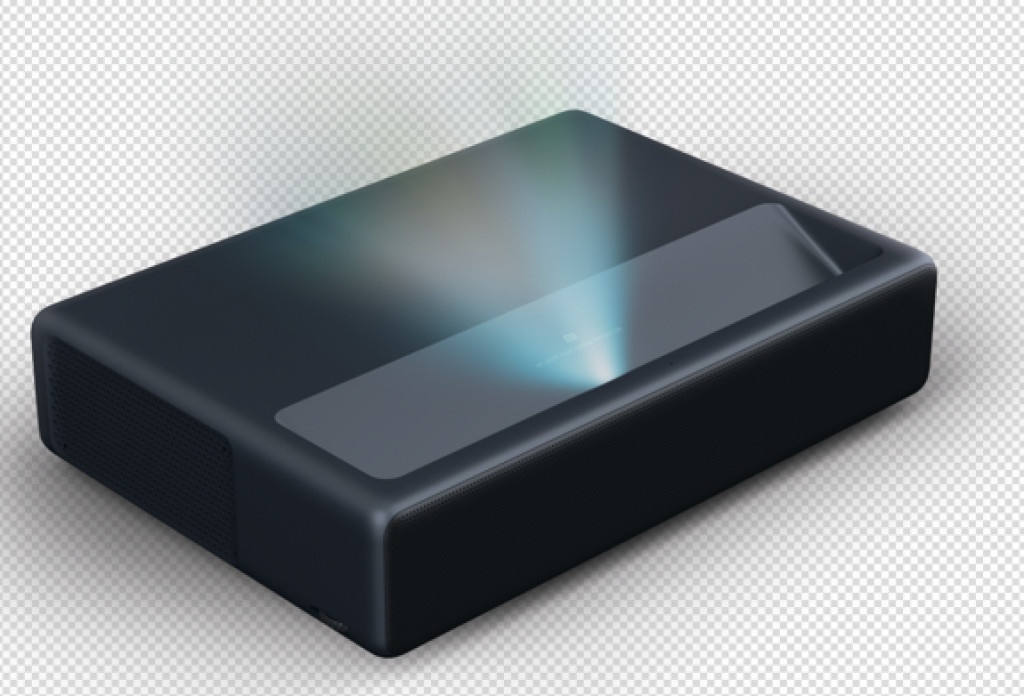

Xiaomi Mi 4K

Ultra-short throw distance, a massive screen for your home

• 4K picture - TI DLP digital light processing
• Massive 150" screen - Extra large-size projection
• Ultra-short throw - 0.233:1 throw ratio, no wiring needed
• ALPD® 3.0 - Movie-theater grade laser light source technology ①
• Realistic and sharp picture - 1600 Ansi lumen and 3000:1 contrast
• High-fidelity audio - Bass-reflex speakers, two full range and two high-frequency
• Smart cooling - Real-time temperature control fan
• Smart Solution - Android TV 9.0 and Google Assistant

For a more enjoyable viewing experience 4K resolution picture / 1600 Ansi lumen brightness/ 3000:1 native contrast

ALPD® 3.0 display technology / massive 150" picture

ALPD® 3.0 display technology for accurate color reproduction

With Appotronics' all new ALPD® 3.0 laser-powered phosphor display technology, the proportion of red light ratio is as high as 16-18% ④. A bright and sharp picture right before your eyes. Conforms to International Telecommunication Union Rec. 709 standard, Wide color gamut distribution for richer colors and more realistic reproduction.

Massive 80–150" picture

Your own private movie theater right in your home

The Mi Laser Projector 4K can be placed on top of a TV cabinet to project 80–150" extra-large images ⑤, together with a 100" anti-glare screen ⑥ for vivid color reproduction. A new opportunity to redefine your concept of a home theater.

Lens designed for ultra-short throw, a large image projected onto a nearby wall

Designed with an ultra short throw ratio of 0.233:1 for a large depth of field, it dispenses with the inconveniently long distances needed for traditional projectors. It can be placed directly on a TV cabinet and need only be 24 cm from the wall to produce an extra-large picture of 100" ⑨. With no wiring hassles, it takes up no space and does not require a cover.

• Place close to the wall
• Easily moved
• No wiring
• Fits the width of a TV cabinet

Brightness of light source 5000 lumens

Picture brightness 1600 ANSI lumens

MI Laser Projector 4K light source features a brightness of over 5000 lumens, picture brightness of 1600 ANSI lumens (bright mode) ⑩.

A more pleasing audio-visual experience

Custom audio / Dolby virtual surround / MIUI TV Source / high-end interface configuration

Dual full-range + dual high-frequency audio system

Unbeatable original sound

Custom-developed high-fidelity sound system combining dual full-range plus dual-high-frequency speakers for a deeper stereo sound. Goes with uniquely designed bass-reflex speakers, which release the soundwaves from inside the speaker case for more powerful volume.

More authentic and more immersive

Immerse yourself in 3-D sound with powerful Dolby virtual surround and human sound enhancement technology ⑪. Experience superb sound-source accuracy. You will feel like you're there, whether it's an intense fight or the sound of fine rain and cicadas.

AI voice commands

Android TV 9.0 and Google Assistant

Press and hold the remote control voice key and tell Google Assistant what you want to see

Extra long 25000 hour lifespan of light source

With a lifespan of 25,000 hours ⑫, assuming 4 hours of use per day the light source can be used for around 17 years.

Extensive high-end interface configuration

Hard drive players, USB drives, game consoles, computers, TV boxes and speakers can all be connected ⑬.

• USB drive
• TV box
• Video game console
• Speaker
• Microphone
• Laptop

Meticulously designed for peace of mind

Anti-direct viewing sensor / smart temperature control / compact body

Caring for your eyes for greater peace of mind

The light source is projected and reflected onto a wall or projector screen, effectively reducing radiation to the human eye and visual fatigue, and protecting your family's eyes.

Smart fan, real-time temperature control

System-level temperature monitoring and automatically adjusting fan power for quiet operation even in bright mode ⑭. Each module has been designed with a dedicated air flow to optimize airflow between modules, quickly and efficiently expelling heat to effectively extend the life of the whole machine.

Fully customized hardware system

The complete body is smaller

With a fully customized modular hardware system, the interior space is put to optimal use; with an orderly, dense arrangement, it is suitably optimized for an overall smaller machine, so it doesn't take up much space in the home.

Features a sophisticated and elegant obsidian black exterior

The case is made of a sandblasted PC material, which does not leave fingerprints and maintains a premium feel at all times. Features a square-shaped design, about the size of a 15" laptop; rounded corners make it safer for children to use. - 410 mm x 291 mm x 88 mm

• 1. As of December 2018, more than 70% of theaters in mainland China that have been upgraded to laser projection use ALPD® 3.0 technology (source: CineAppo).
• 2. 4K Picture: Test report from China Electronic Standardization Institute (CESI), report no. CESI201812240006-103.
• 3. Contrast: From Shenzhen Academy of Metrology and Quality Inspection, report no. WT188006766.
• 4. Proportion of red light: From Shenzhen Appotronics Corporation Ltd, report no. RE020181123G006.

5. Adjustable picture size 40–200"; recommended picture size 80–150" 6. Mi 4K Laser Projector 150'' and Mi Ambient Light Rejecting Projector Screen 100" are sold separately 7. Picture display size 2214 x 1245 mm, projector screen size 2234 x 1265 x 6 mm. 8. Ambient light blocking = 1 - reflective brightness × π/center vertical illuminance of projection screen in bright room conditions. Test data from FSCREEN Laboratory. 9. Distances are approximate and may differ from the actual distance. Adjust for actual dimensions.

• 10. Light source brightness: From Zhongjian Group Nanfang Electronic Product Testing (Shenzhen) Co., Ltd., report no. SET2018-14072; Picture brightness: From Shenzhen Academy of Metrology and Quality Inspection, report no. WT188006766, parameter floating label reference GBT28037 2011 Information Technology, General specification for projectors.
• 11. Dolby Virtual Surround and Human Sound Enhancement Technology: Official DOLBY and Dts technical certified, DOLBY certification no. 589915, dts certificate no. C237603.

12. Light source lifespan 25000 hours at an ambient temperature of 35°C and a current of 3.0 A, and 7500 hours of continuous operation, which refers to the time for the brightness of the IES TM-21 normalized light source to decrease to 50% of its initial brightness. Report no. RE020171226L007. 13. Mi Laser Projector 4K can connect to devices that support HDMI audio and video output. Traditional cable TV programs can be viewed by connecting Mi Box. This device cannot directly receive broadcast TV signals. 14. Low noise: From Shenzhen Academy of Metrology and Quality Inspection, report no. WT188006766. Product images are for reference only, please refer to the actual product.

Specifications:

• Product name: Mi 4K Laser Projector 150''
• Product number: MJJGTYDS03FM
• Product Size: 410mm x 291mm x 88mm (main unit)
• Product weight: 7.2kg
• Lens focus: Electric focusing
• Keystone correction: 8-point correction
• Power consumption:
